DX5508H

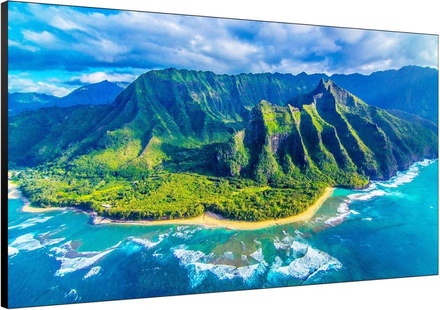

The DX5508 Series is a line of professional 55-inch video wall displays engineered for 24/7 operation in control rooms, monitoring centers, and mission-critical environments. Featuring an ultra-narrow bezel design, advanced local dimming, and deep image processing, these displays deliver seamless, high-contrast visuals with exceptional color accuracy and reliability.
Display Specifications:
Picture/Display
| (metric) Diagonal screen size | 139.7 cm |
|---|---|
| (inch) Diagonal screen size | 55″ |
| Panel resolution | 1920 x 1080 |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| (typical) Brightness | 700 cd/m² |
| Dynamic contrast ratio | 140,000:1 |
| (typical) Response time | 8 ms |
| Aspect ratio | 16:9 |
| (horizontal) Viewing angle | 178° |
| (vertical) Viewing angle | 178° |
| Pixel pitch | 0.63 x 0.63 mm |
| Display colours | 1.07 Billion (10-bit) |
| (typical) Contrast ratio | 1100:1 |
| Panel technology | IPS (In-Plane Switching) |
| Backlight type | Direct LED with Local Dimming (8×10) |
| (Border) Bezel width | 0.44 mm |
| (Bezel-to-Bezel) Bezel width | 0.88 mm |
Connectivity
| HDMI | 2.0 (x 2) |
|---|---|
| DisplayPort | 1.3 (x 1 Input, x 1 Output Loop-Through) |
| DVI | DVI-D (x 1) |
| VGA | Analogue D-Sub (x 1) |
| OPS Slot | Yes (Optional) |
| USB | 2.0 (x 1, Service) |
| Audio Input | 3.5 mm Mini Jack (x 1) |
| Audio Output | 3.5 mm Mini Jack (x 1) |
| LAN (Control) | RJ45 (x 2) |
| RS232 Control | In/Out (3.5 mm Jack) |
| IR Control | In (3.5 mm Jack) |
| Thermal Sensor | Yes (Internal Monitoring) |
Physical Specifications

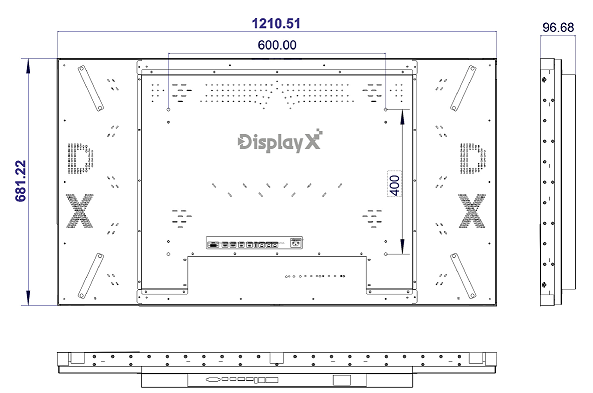

| Dimensions (W x H x D) without stand | 1210.51 x 681.22 x 96.68 mm |
|---|---|
| Weight | 33 kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% (non-condensing) |
Convenience
| Carrying Handles | 4 x Ergonomic Handles |
|---|---|
| Screen Saving Functions | Pixel Shift, Built-in Screen Protection |
| Energy Saving Functions | Smart Power Management, Local Dimming |
| Ease of Installation | VESA Mount Compatible (600×400 mm), Lightweight Design |
| External Control | RS232, LAN, IR |
Power
| Power Consumption (Max) | 286 W |
|---|---|
| Power Consumption (Typical) | 110 W – 150 W |
| Standby Power Consumption | < 0.5 W |
| Power Supply | 100-240 VAC, 50/60 Hz |
Reliability & Compliance
| MTBF (Mean Time Between Failures) | 60,000 hours |
|---|---|
| Safety Standards | IEC 60950-1 |
| Environmental Standards | RoHS, REACH |
